Specifications

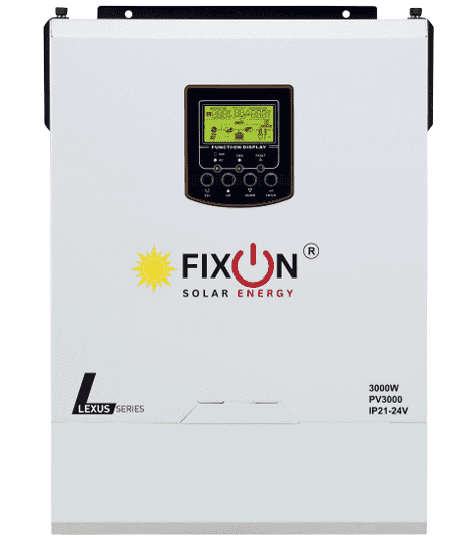

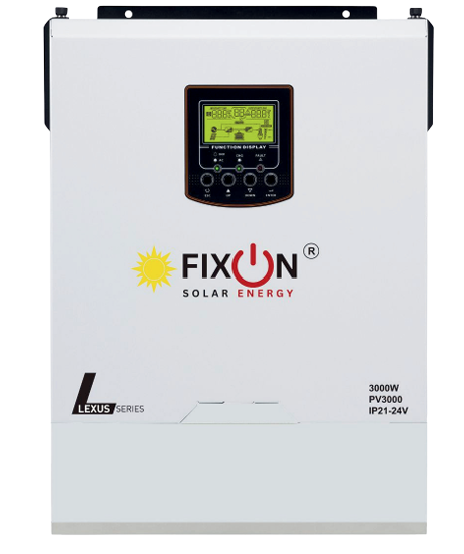

MODELLEXUS 3000W-24VRATED POWER3000VA/3000W

INPUT

• Voltage: 230 VAC
• Selectable Voltage Range: 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
• Frequency Range: 50 Hz/60 Hz (Auto sensing)

OUTPUT

• AC Voltage Regulation (Batt. Mode): 230VAC +- 5%
• Surge Power: 6000VA
• Efficiency (Peak): 93%
• Transfer Time: 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
• Waveform: Pure Sine wave

BATTERY

• Battery Voltage: 24 VDC
• Floating Charge Voltage: 27 VDC
• Overcharge Protection: 32 VDC

SOLAR CHARGING & AC CHARGER

• Maximum PV Array Open Circuit Voltage: 450 VDC
• Maximum PV Array Power: 3000W
• MPPT Range @ Operating Voltage: 60-400 VDC
• Maximum Solar Charge Current: 80A
• Maximum AC Charge Current: 80A

PHYSICAL

• Dimension, D x W x H (mm): 100 x 288 x 390
• Net Weight (kgs): 7.5
• Communication Interface: RS232

ENVIRONMENT

• Humidity: 5% to 95% Relative Humidity (Non-condensing)
• Operating Temperature: -10 C to 50 C
• Storage Temperature: -15 C to 60 C

Product Specifications are subject to change without further notice.
